Changan CS75 FL 2018 Electric Diagrams
Size: 66.5 MB
Format: PDF
Language: English
Brand: Changan
Type of Machine: Automotive
Type of Manual: Electric Diagrams
Model: Changan CS75 FL 2018
Number of Pages: 596 Pages

Contents:

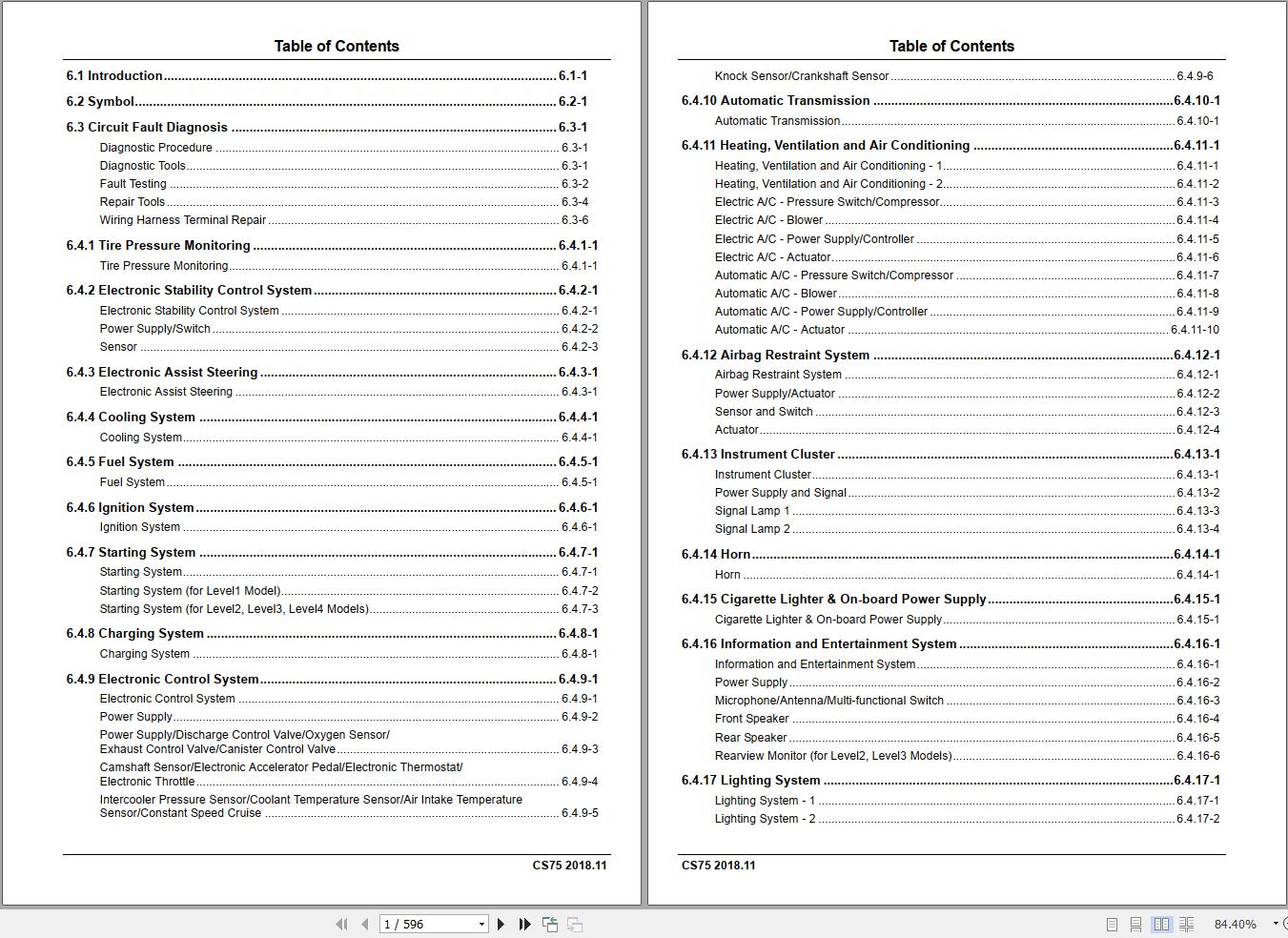

6.1 Introduction
6.2 Symbol
6.3 Circuit Fault Diagnosis
6.4.1 Tire Pressure Monitoring
6.4.2 Electronic Stability Control System
6.4.3 Electronic Assist Steering
6.4.4 Cooling System
6.4.5 Fuel System
6.4.6 Ignition System
6.4.7 Starting System
6.4.8 Charging System
6.4.9 Electronic Control System
6.4.10 Automatic Transmission
6.4.11 Heating, Ventilation and Air Conditioning
6.4.12 Airbag Restraint System
6.4.13 Instrument Cluster
6.4.14 Horn
6.4.15 Cigarette Lighter & On-board Power Supply
6.4.16 Information and Entertainment System
6.4.17 Lighting System
6.4.18 Wiper and Washer
6.4.19 Power Rearview Mirror
6.4.20 Central Door Lock and Body Theft Deterrent System

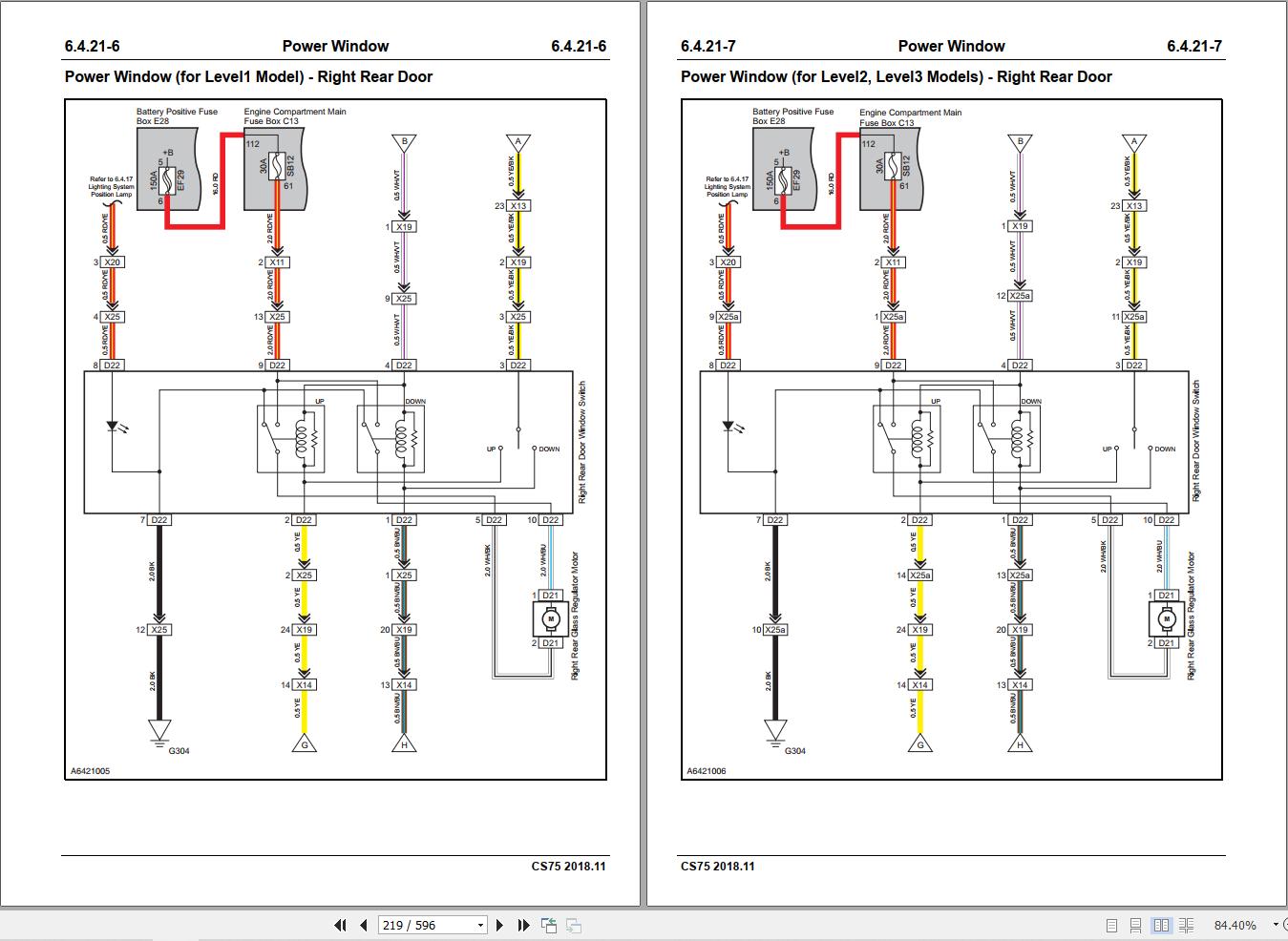

6.4.21 Power Window
6.4.22 Defroster
6.4.23 Sunroof
6.4.24 Parking Assist System
6.4.25 Body Control System
6.4.26 On-board Network System
6.4.27 Keyless Entry Control System
6.4.28 Power Seat
6.4.29 Electronic Parking Brake System
6.4.30 Blind Spot Monitoring System
6.4.31 4WD System
6.4.32 360° Panoramic View Monitor System
6.5 Fuses and Relays
6.6 Power Supply Distribution
6.7 Fuse Details
6.8 Grounding Distribution
6.9 Wiring Harness Connector Location View
6.10 Grounding Location View
6.11 Wiring Harness Connector Terminal View
6.12 Abbreviation
